RAM Mount Universal Large Clamp Cradle RAM POD1 Vehicle Floor Mount

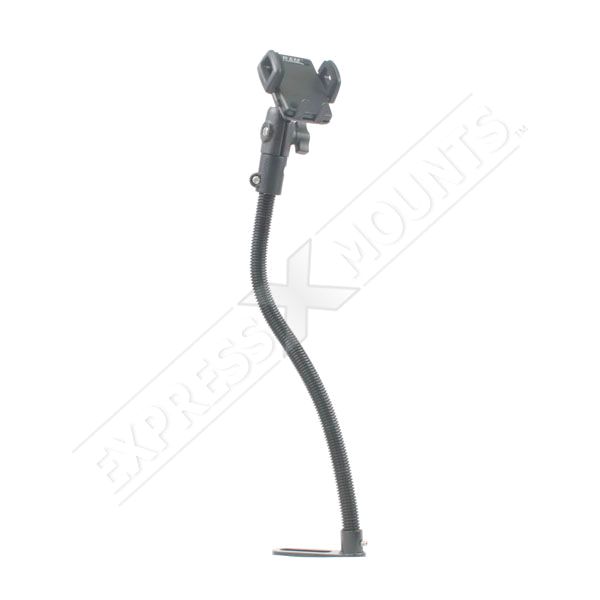

RAM Mount Universal Large Clamp Cradle Vehicle Floor Mount
Click image for larger view
Mfg P/N: RAM-B-316-1-UN3U
SKU: RAMB316-1UN3

Share this item: Facebook DiggDelIcioUs
 $57.95
List Price:  $73.59
You Save: $15.64 (21%)
Price shown in USD currency

In Stock!
Ships: by 3PM today

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL LARGE CLAMP CRADLE VEHICLE FLOOR MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-316-1-UN3 RAM-POD-I Flex Rod Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Flexible Rod with a RAM Plastic Universal Large Side Clamping Cradle.

Universal Clamp Mount Cradle Design:

The RAM-HOL-UN3 Large RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones

Using the Cradle:

This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle are two small support legs that move along the base edge of the cradle. The legs support the bottom of the item securely in the cradle, while allowing cable connection to the unit.

Important Cradle Use:

The RAM side clamping cradle is designed to be used in a closed cabin environment. The side clamping cradle is only a light weight cradle and may not hold your device in a high vibration situations as found on a motorcycle.

Universal Cradle Dimensions:

  • Minimum Grip Width: 2.32''
  • Maximum Grip Width: 3.37''
  • Side Clamp Height: 1.75''
  • Side Clamp Depth: 0.93''
  • Cradle Spine Height: 3.92''
  • Cradle Spine Width: 2.25''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.

Universal Clamp Mount Arm Design:

The RAP-B-200-1 RAM Mount High Strength Plastic Single Socket Short Arm has a B Size 1 inch Ball Socket at one end, and a Female Octagon button connection at the other. The Octagon Button end will mount on the end of the Aluminum Flex Rod, allowing the 1 inch socket to hold your device cradle or plate. The side of the arm includes a tightening knob which allows you to open and close the socket end.

Universal Clamp Mount Base Design:

The RAM-316-1A RAM Mount Rigid Arm Base consists of a RAM octagon at the end of a 18 inch rigid flex arm with seat rail base. The RAM-POD-I mounting foot plate base is designed to connect to a vehicle seat rail bolt in your Car, Truck, SUV, RV, Big Rig or bolted location. Connected at right angles to the mounting foot is an 18 inch long Aluminum Flexible Rod. This rod can hold light to medium weight items in your vehicle safely and securely. At the top of the rigid flex rod is a male RAM High Strength Plastic Octagon Button that will connect directly to a RAM Female Octagon Button Arm.

Movement of the Rigid 18 inch Flex Arm:

It is important to note that the rigid 18 inch flex arm found on this mount is designed to hold an approximate weight of up to 4 lbs. With this in mind, the aluminum rod is more rigid than flexible. It is designed to be bent into position when being installed and then hold it's position. This means you cannot move the mount around once installed with just one hand.



UNIVERSAL LARGE CLAMP CRADLE VEHICLE FLOOR MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Plastic Universal Large Side Clamping Cradle (RAM-HOL-UN3U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Plastic Arm with Ball and Button Socket (RAP-B-200-1U)
4. RAM Mount Vehicle Floor Mount with Octagon Button End (RAM-316-1AU)
