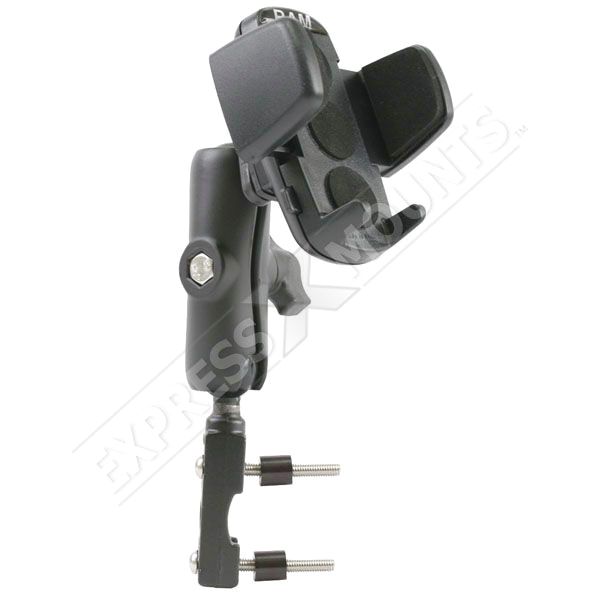

RAM Mount Universal Small Cradle on Aluminum Motorcycle Brake Mount


RAM Mount Universal Small Cradle on Motorcycle Brake Mount
Click to view larger image
Mfg P/N: RAM-B-174-UN1U
SKU: RAMB174UN1

Share this item: Facebook DiggDelIcioUs
 $40.95
List Price:  $52.77
You Save: $11.82 (22%)
Price shown in USD currency

In Stock!
Ships today

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL SMALL CRADLE ON MOTORCYCLE BRAKE MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-174-UN1 RAM Mount Marine Grade Aluminum Motorcycle Brake/Clutch Base Mount consists of the 1 inch diameter RAM ball and socket system with RAM Plastic Universal Small Side Clamping Cradle.

Mount Cradle Design:
The RAM-HOL-UN1 Small RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.

Using the Cradle:

This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle.

Important Cradle Use:

The RAM side clamping cradle is designed to be used in a closed cabin environment. The side clamping cradle is only a light weight cradle and may not hold your device in a high vibration situations as found on a motorcycle.

Universal Cradle Dimensions:

  • Minimum Grip Width: 1.5''
  • Maximum Grip Width: 2.6''
  • Side Clamp Height: 1.88''
  • Side Clamp Depth: 1.13''
  • Cradle Spine Height: 3.68''
  • Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.

Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount Base Design:
The RAM-B-309-1 RAM Mount Powder Coated Marine Grade Aluminum Clutch/Brake Motorcycle Mount Base includes a 1 inch diameter Rubber Ball and a hexagonal openning for the connection of an optional secondary RAM-B-309-3 Rubber 1 inch diameter ball. Included with this base is both standard and metric mounting bolts.

The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select Motorcycles. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.

RAM E-Drawings and In Use Pictures:

To understand more about the RAM-B-309-1 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below. The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
RAM-B-309-1 e-drawing
RAM-B-309 Base e-drawing		 RAM-B-309-1 in use connection
RAM-B-309 Base In Use



UNIVERSAL SMALL CRADLE ON MOTORCYCLE BRAKE MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Plastic Universal Small Side Clamping Cradle (RAM-HOL-UN1U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Motorcycle Handle Base with Single 1 inch Ball (RAM-B-309-1U)




UNIVERSAL SMALL CRADLE ON MOTORCYCLE BRAKE MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. (It's quick and easy! No login required.)

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!
