RAM Mount Aluminum Garmin nuvi 500 Series Motorcycle Handlebar Kit Mount


RAM Mount Garmin nuvi 500 Series Motorcycle Kit Mount
Click to view larger image
Mfg P/N: RAM-B-174-7-GA32U
SKU: RAMB174-7GA32

Share this item: Facebook DiggDelIcioUs
 $36.95
List Price:  $43.97
You Save: $7.02 (16%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



GARMIN NUVI 500 SERIES MOTORCYCLE KIT MOUNT PRODUCT DETAILS
 Back to Top

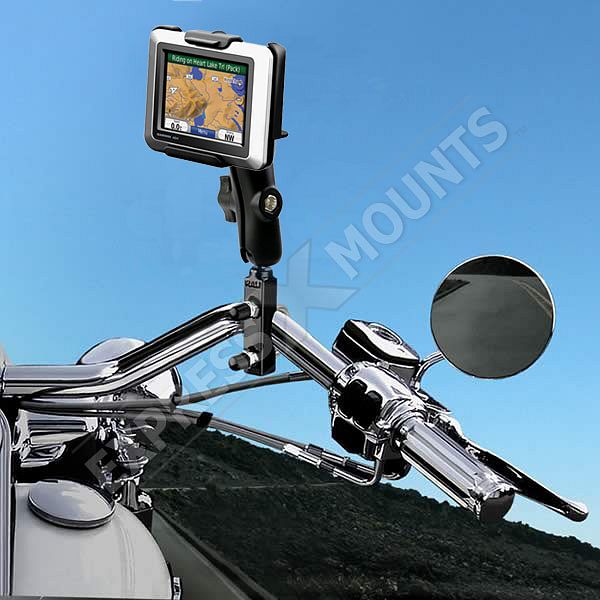

The RAM-B-174-7-GA32 Garmin nuvi 500 and 550 Series Motorcycle RAM Mount is a Marine Grade Aluminum Mount with a Motorcycle Brake/Clutch Reservoir PLUS U-Bolt Base and RAM Custom Plastic Cradle. The mount is designed with a RAM 1 inch diameter patented rubber ball and socket system that has adjustment point at the cradle and base. With a twist of the arm knob, you can move the Garmin nuvi 500 and 550 Series mount to your optimum viewing position.

Garmin GPS Mount Options:

To help ensure you have the Garmin nuvi 500 and nuvi 550 Mount you require, take a look at the list of available RAM Garmin GPS mounts on the RAM-HOL-GA32 Series of Garmin nuvi 500 and nuvi 550 Cradles and Mounts Page. Here you can select from suction cup GPS mounts, flat surface screw down GPS mounts, GPS car mounts, non skid weighted GPS mounts and more bundled with the RAM-HOL-GA32 Garmin nuvi 500 and nuvi 550 Series Cradle.

Garmin GPS Mount Cradle Design:

The RAM-HOL-GA32 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin nuvi 500 and nuvi 550 Series, including the following GPS units,
  • Garmin nuvi 500
  • Garmin nuvi 550
All cables can stay connected to the unit while in the RAM cradle.

Garmin GPS Mount Cradle Plate:

The RAM-B-238 Marine Grade Aluminum Diamond Plate is designed to connected to the back of the mount cradle. The diamond plate has a 1.0 inch diameter rubber ball connected at right angles to the plate, which connects directly to the 1 inch arm socket. The cradle includes the required hardware to connect the plate to the cradle. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-238 Design Drawings (pdf file).

Garmin GPS Mount Arm Design:

The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

Garmin GPS Mount Base Design:

The RAM-B-309-7 RAM Mount Powder Coated Marine Grade Aluminum Motorcycle Base can mount to either the clutch/ brake reservoir or directly to a round handle bar rail. The base includes an integrated 1 inch diameter rubber ball, hardware for rail mounting and both standard and metric mounting bolts for clutch/brake mounting. The zinc coated metal u-bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

The base connects to the left or right side of your handlebar clutch/brake reservoir on the Honda Goldwing and other select motorcycles or you can connect directly to your handlebars with the u-bolt hardware. To see if this base will work with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94 inches and a maximum of 1.58 inches and can be viewed in the design drawing below.

RAM E-Drawings and In Use Pictures:

To understand more about the RAM-B-309-7 Motorcycle Mount Base hole spacing and ball layout and location, check out the design drawing below of the RAM-B-309-1 (Note: the hexagonal hole shown in the design drawings is not included on the RAM-B-309-7). The second image shows the RAM-B-309-1 in use and how the base mounts to the clutch/brake reservoir.
RAM-B-309-1 e-drawing
RAM-B-309 Base e-drawing		 RAM-B-309-1 in use connection
RAM-B-309 Base In Use
