RAM Mount Aluminum Universal Finger Grip Cradle Stainless Steel U-Bolt Mount


RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount
Click to view larger image
Mfg P/N: RAM-B-149-UN4U
SKU: RAMB149UN4

Share this item: Facebook DiggDelIcioUs
 $41.95
List Price:  $49.87
You Save: $7.92 (16%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca 		More Images...
RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount
RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount
RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount RAM Mount Universal Finger Grip Stainless Steel U-Bolt Mount


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL FINGER GRIP STAINLESS STEEL U-BOLT MOUNT PRODUCT DETAILS
 Back to Top

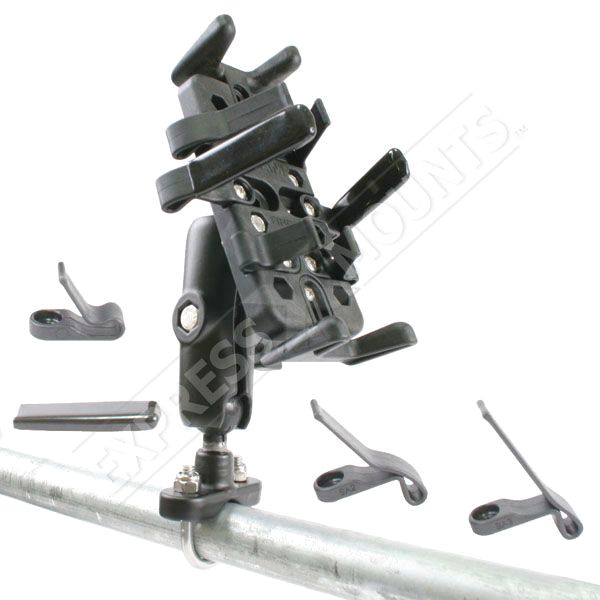

The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Finger Clamping Plastic Cradle.

BASE DESIGN:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black plactice covers over the exposed ends of the u-bolt.

NOTE: This base is completly rust proof.

For Small Rail Mounting:

For a smaller rail, you can purchase the RAM Mount Plastic U-Bolt Adapter for circular rails with diameter down to 0.5 inches.

For Larger Rail Mounting:

For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.

ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.

CRADLE DESIGN:

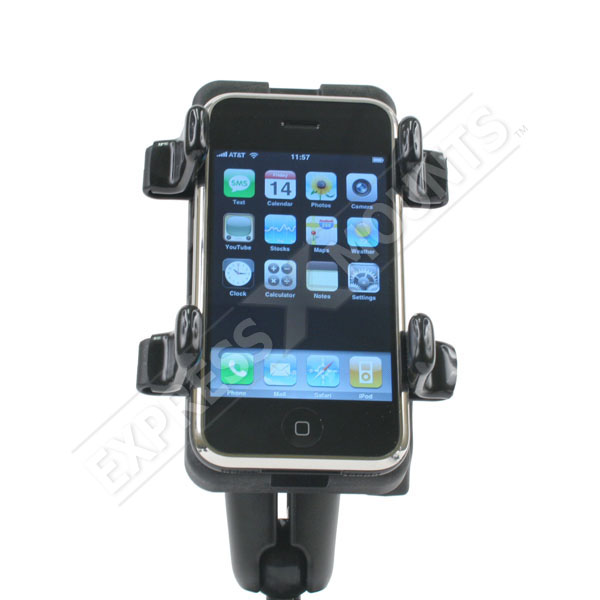

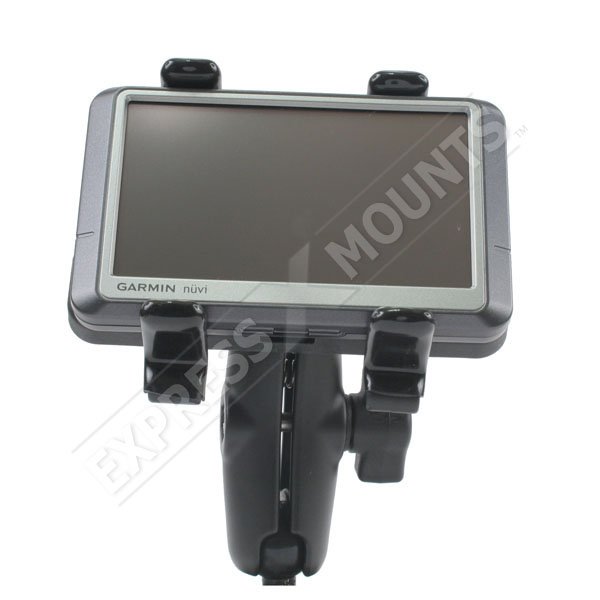

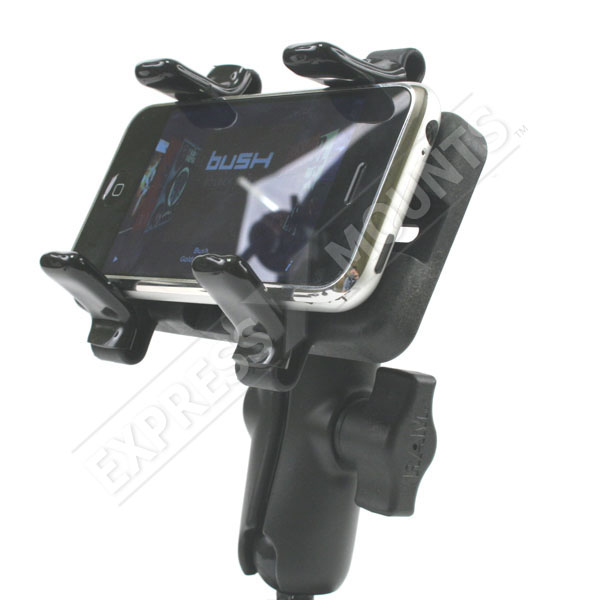

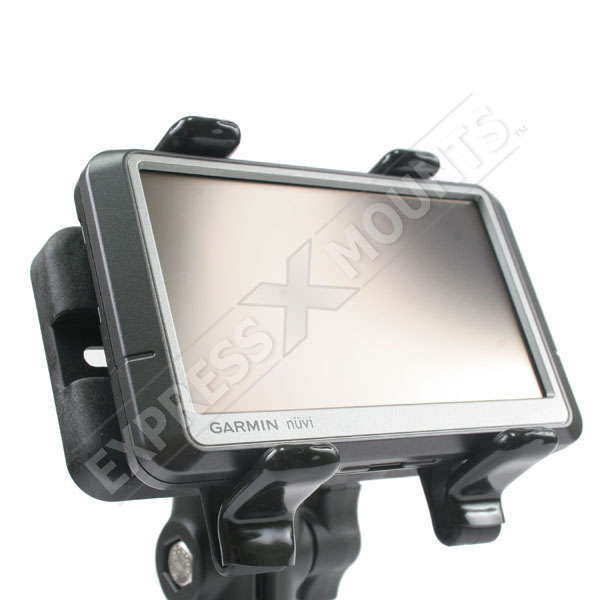

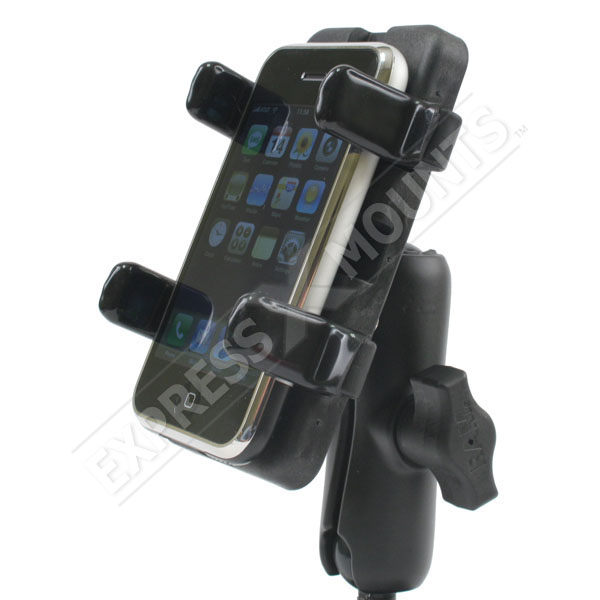

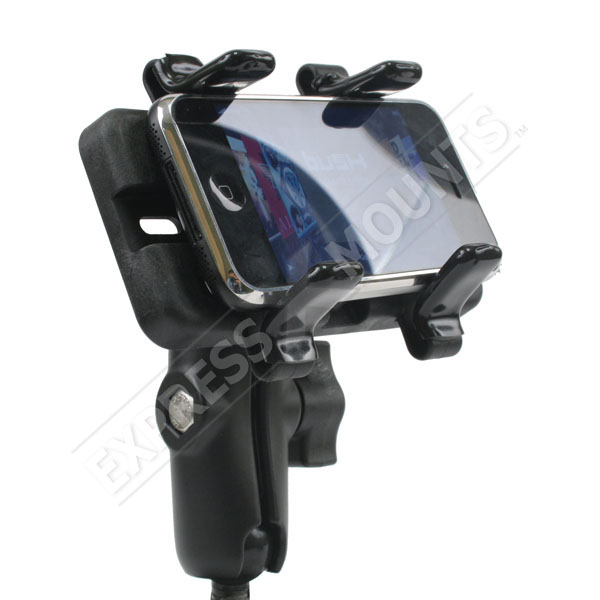

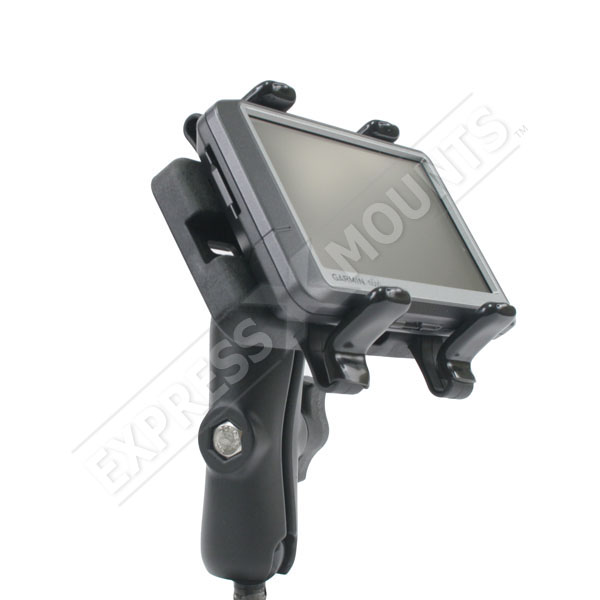

The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones

Using the Cradle:

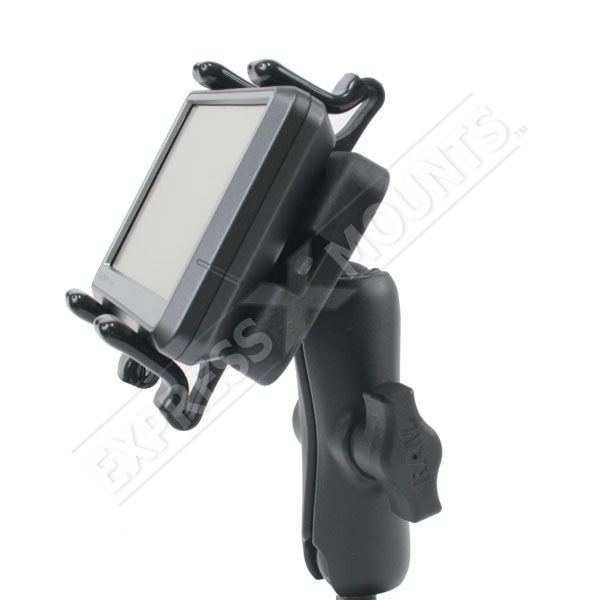

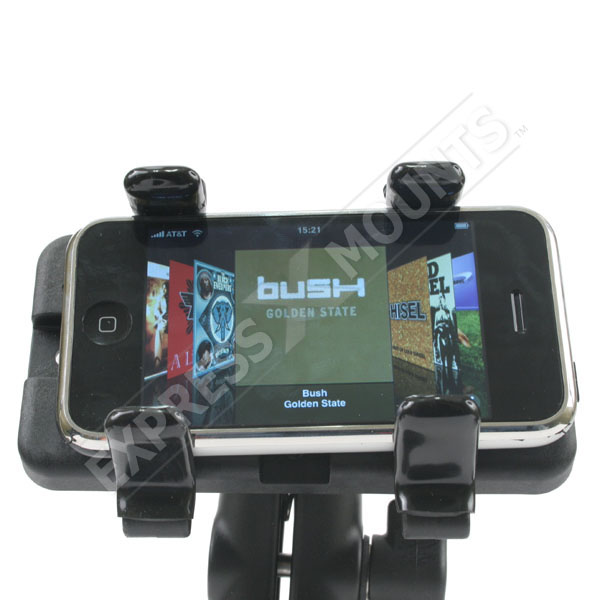

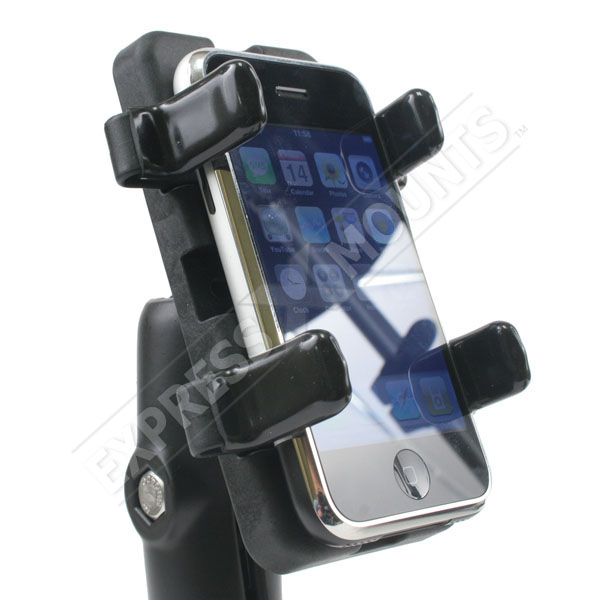

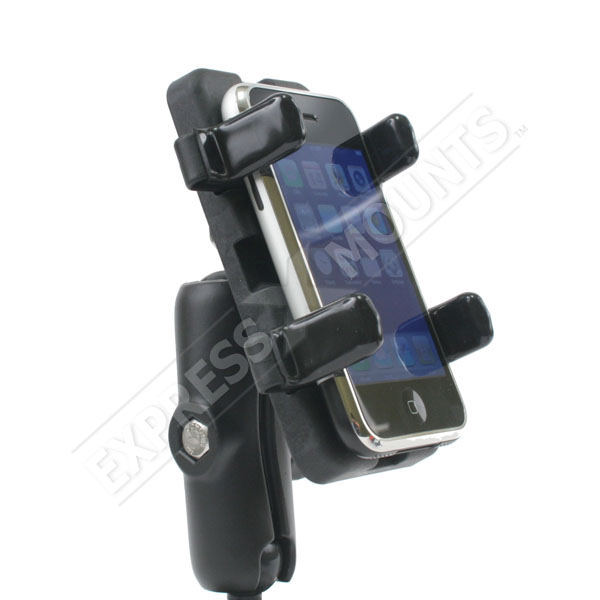

This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.

Cradle Holding Dimensions:

Height Dimensions:
  • Minimum with Top and Bottom Plates:  5.25'' *
  • Maximum with Top and Bottom Plates:  6.0'' *
* The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:  2.5W x 5.0H''

Using Short Arm Side Clamps
  • Maximum Depth:  0.75''
  • Minimum Width:  1.25''
  • Maximum Width:  3.0''
Using Medium Arm Side Clamps
  • Maximum Depth:  1.25''
  • Minimum Width:  1.5''
  • Maximum Width:  3.5''
Using Long Arm Side Clamps
  • Maximum Depth:  1.6''
  • Minimum Width:  2.25''
  • Maximum Width:  3.5''



UNIVERSAL FINGER GRIP STAINLESS STEEL U-BOLT MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Plastic Universal Finger Grip Clamping Cradle (RAM-HOL-UN4U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Stainless Steel Motorcycle U-Bolt Base with 1inch Ball (RAM-B-231U)
