GPS Mounts > Universal Mounts Link to this page:

RAM Mount Aluminum Universal Medium Cradle Stainless Steel U-Bolt Mount


RAM Mount Universal Medium Cradle Stainless Steel U-Bolt Mount
Click to view larger image
Mfg P/N: RAM-B-149-UN2U
SKU: RAMB149UN2

Share this item: Facebook DiggDelIcioUs
 $40.95
List Price:  $53.08
You Save: $12.13 (23%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL MEDIUM CRADLE STAINLESS STEEL U-BOLT MOUNT PRODUCT DETAILS
 Back to Top

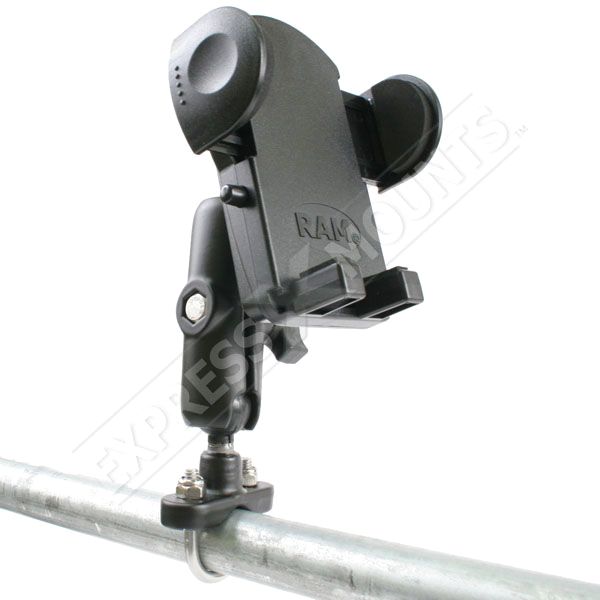

The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Medium Side Clamping Plastic Cradle.

BASE DESIGN:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black plactice covers over the exposed ends of the u-bolt.

NOTE: This base is completly rust proof.

For Small Rail Mounting:

For a smaller rail, you can purchase the RAM Mount Plastic U-Bolt Adapter for circular rails with diameter down to 0.5 inches.

For Larger Rail Mounting:

For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.

ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.

CRADLE DESIGN:
The RAM-HOL-UN2 Medium RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.

Using the Cradle:

This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom of the back of the cradle which will spring the clamps open. At the base of the cradle is a small support to hold the bottom of the item securely in the cradle.

Important Cradle Use:

The RAM side clamping cradle is designed to be used in a closed cabin environment. The side clamping cradle is only a light weight cradle and may not hold your device in a high vibration situations as found on a motorcycle.

Universal Cradle Dimensions:

  • Minimum Grip Width: 1.5''
  • Maximum Grip Width: 2.6''
  • Side Clamp Height: 1.88''
  • Side Clamp Depth: 1.13''
  • Cradle Spine Height: 3.68''
  • Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.



UNIVERSAL MEDIUM CRADLE STAINLESS STEEL U-BOLT MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Plastic Universal Medium Side Clamping Cradle (RAM-HOL-UN2U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Stainless Steel Motorcycle U-Bolt Base with 1inch Ball (RAM-B-231U)
