RAM Mount Aluminum Universal Side Clamp PDA Stainless Steel U-Bolt Mount


RAM Mount Universal Side Clamp PDA Stainless Steel U-Bolt Mount
Click to view larger image
Mfg P/N: RAM-B-149-PD2U
SKU: RAMB149PD2

Share this item: Facebook DiggDelIcioUs
 $42.95
List Price:  $51.77
You Save: $8.82 (17%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL SIDE CLAMP PDA STAINLESS STEEL U-BOLT MOUNT PRODUCT DETAILS
 Back to Top

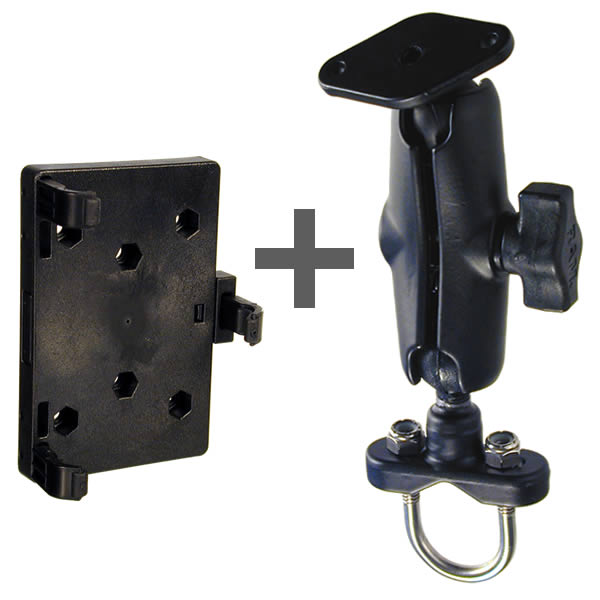

The RAM Marine Grade Aluminum Mount with Stainless Steel U-Bolt Rail Base consists of the 1'' dia. ball and socket system with RAM Universal Side Clamping Plastic Cradle for PDA Units.

BASE DESIGN:
The RAM-B-231 RAM Mount Powder Coated Marine Grade Aluminum Rail Base has a 1.0 inch diameter Rubber Ball designed to sit at right angles to the mounting rail. The Stainless Steel U-Bolt and nuts included are designed it fit on most motorcycle round handlebars, or any circular rail or pipe with diameter from 3/4 to 1.0 inch.

To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black plactice covers over the exposed ends of the u-bolt.

NOTE: This base is completly rust proof.

For Small Rail Mounting:

For a smaller rail, you can purchase the RAM Mount Plastic U-Bolt Adapter for circular rails with diameter down to 0.5 inches.

For Larger Rail Mounting:

For a larger rail, you can purchase the RAM Mount Stainless Steel Large Rail U-Bolt for circular rails with diameter up to 1.25 inches.

ARM DESIGN:
The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.

CRADLE DESIGN:
The RAM High Strength Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, like PDAs and Portable Entertainment Systems (Sony PSP).

Cradle Clamping Dimensions:
Height Range: open
Width: 2 7/8'' - 3.5''
Thickness: 3/8'' - 1 1/8''

Placing Your Device into the Cradle:
Place the unit into spring loaded arm side of the cradle, and then push it open to the point where you can lay the unit into the cradle. Now gently close the expandable clamp on to the unit.

Included with the Cradle:
The cradle includes three (3) sets of side clamping arms. Each set of arms includes three (3) individual arms which connect to the slots on the side of the cradle. The arms have a rubber tip for an optimum hold, and you can remove and change the arms so you can find the right clamping hold for you device. The arms come in three (3) different lengths:
• Short Arm Length: 1/2''
• Medium Arm Length: 7/8''
• Long Arm Length: 1 3/16''



UNIVERSAL SIDE CLAMP PDA STAINLESS STEEL U-BOLT MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Universal Side Grip Cradle (RAM-HOL-PD2U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Stainless Steel Motorcycle U-Bolt Base with 1inch Ball (RAM-B-231U)




UNIVERSAL SIDE CLAMP PDA STAINLESS STEEL U-BOLT MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. (It's quick and easy! No login required.)

Vince's Review:       Rating:       Date: 2008-12-02
This item was very easy to install and works perfectly. I have no vibration from my GPS when it is on the mount and removes very easily for a clean look on the bike when Im not using it.




UNIVERSAL SIDE CLAMP PDA STAINLESS STEEL U-BOLT MOUNT ALTERNATIVE UNITS
 Back to Top

RAM MOUNT
RAM Mount Side Clamp PDA Zinc U-Bolt Mount (RAM-B-149Z-PD2U)
 Side Clamp PDA Zinc U-Bolt Mount		RAM MOUNT
RAM Mount Universal Side Clamp PDA Stainless Steel U-Bolt Mount (RAM-B-149-PD2U)
 Universal Side Clamp PDA Stainless Steel U-Bolt Mount		RAM MOUNT
RAM Mount RAP-B-149-PD2 (RAP-B-149-PD2U)
 RAP-B-149-PD2
