GPS Mounts > Universal Mounts Link to this page:

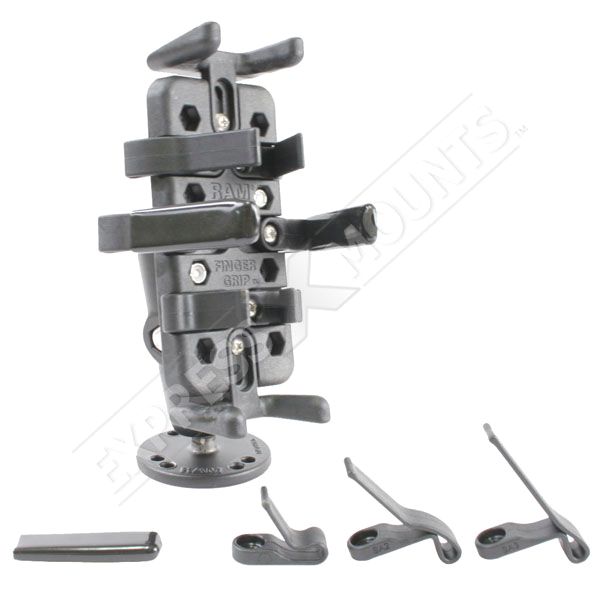

RAM Mount Universal Finger Cradle on Aluminum Screw Down Plate Mount


RAM Mount Universal Finger Cradle on Screw Down Plate Mount
Click to view larger image
Mfg P/N: RAM-B-138-UN4
SKU: RAMB138UN4

Share this item: Facebook DiggDelIcioUs
 $36.95
List Price:  $43.57
You Save: $6.62 (15%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca 		More Images...
RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount
RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount
RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount RAM Mount Universal Finger Cradle on Screw Down Plate Mount


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL FINGER CRADLE ON SCREW DOWN PLATE MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-138-UN4 RAM Mount Marine Grade Aluminum Screw Down Plate Mount consists of the 1 inch diameter ball and socket system with RAM Universal Finger Side Clamping Plastic Cradle.

Mount Base Design:
The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Mount Base Mounting Solutions:

Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.

Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount Cradle Design:
The RAM-HOL-UN4 Plastic Finger Grip RAM Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices, including the Blackberry range of Phones

Using the Cradle:

This cradle has four (4) rubber coated fingers placed along sides to grip any device you need to hold. The fingers open by squeezing the ''peg'' ends to open the small finger arms. The bottom of the cradle includes a holding plate that adds support to the device being held by the mount.

Cradle Holding Dimensions:

Height Dimensions:
  • Minimum with Top and Bottom Plates:  5.25'' *
  • Maximum with Top and Bottom Plates:  6.0'' *
* The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:  2.5W x 5.0H''

Using Short Arm Side Clamps
  • Maximum Depth:  0.75''
  • Minimum Width:  1.25''
  • Maximum Width:  3.0''
Using Medium Arm Side Clamps
  • Maximum Depth:  1.25''
  • Minimum Width:  1.5''
  • Maximum Width:  3.5''
Using Long Arm Side Clamps
  • Maximum Depth:  1.6''
  • Minimum Width:  2.25''
  • Maximum Width:  3.5''



UNIVERSAL FINGER CRADLE ON SCREW DOWN PLATE MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Plastic Universal Finger Grip Clamping Cradle (RAM-HOL-UN4U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Round 2.5 inch dia Plate with 1 inch Ball (RAM-B-202U)




UNIVERSAL FINGER CRADLE ON SCREW DOWN PLATE MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. (It's quick and easy! No login required.)

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!
