GPS Mounts > Universal Mounts Link to this page:

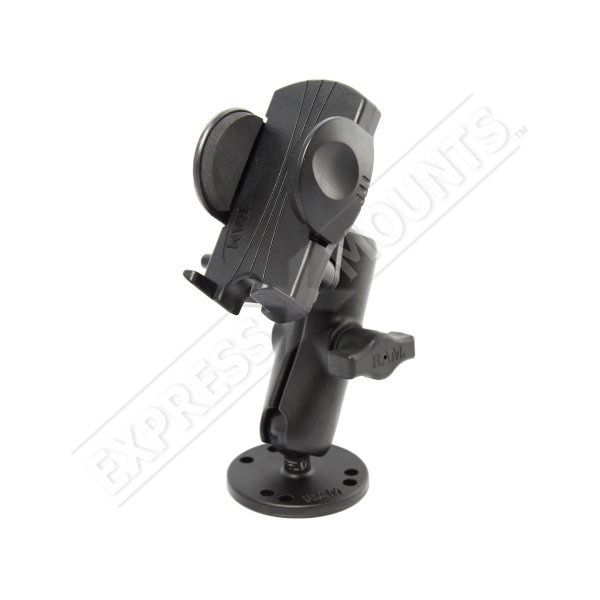

RAM Mount Universal Small Cradle on Aluminum Screw Down Plate Mount


RAM Mount Universal Small Cradle on Screw Down Plate Mount
Click to view larger image
Mfg P/N: RAM-B-138-UN1U
SKU: RAMB138UN1

Share this item: Facebook DiggDelIcioUs
 $36.95
List Price:  $57.04
You Save: $20.09 (35%)
Price shown in USD currency

In Stock!
Ships today!

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL SMALL CRADLE ON SCREW DOWN PLATE MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-138-UN1 RAM Mount Marine Grade Aluminum Screw Down Plate Mount consists of the 1 inch diameter ball and socket system with RAM Universal Small Side Clamping Plastic Cradle.

Mount Base Design:
The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Mount Base Mounting Solutions:

Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.

Mount Arm Design:
The RAM Mount Dual Socket Arm (RAM-B-201) is a B Size 1 inch Ball Dual Socket Arm, made of Marine Grade Aluminum. The arm is 3 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends.

Mount Cradle Design:
The RAM-HOL-UN1 Small RAM Plastic Side Clamping Cradle is designed to hold a large amount of different kinds of cell phones and electronic devices.

Using the Cradle:

This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle.

Important Cradle Use:

The RAM side clamping cradle is designed to be used in a closed cabin environment. The side clamping cradle is only a light weight cradle and may not hold your device in a high vibration situations as found on a motorcycle.

Universal Cradle Dimensions:

  • Minimum Grip Width: 1.5''
  • Maximum Grip Width: 2.6''
  • Side Clamp Height: 1.88''
  • Side Clamp Depth: 1.13''
  • Cradle Spine Height: 3.68''
  • Cradle Spine Width: 2.0''
NOTE: The top of the cradle is open, so the items in the cradle can be larger than the height of the cradle.



UNIVERSAL SMALL CRADLE ON SCREW DOWN PLATE MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Plastic Universal Small Side Clamping Cradle (RAM-HOL-UN1U)
2. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
3. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
4. RAM Mount Round 2.5 inch dia Plate with 1 inch Ball (RAM-B-202U)




UNIVERSAL SMALL CRADLE ON SCREW DOWN PLATE MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. (It's quick and easy! No login required.)

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!
