RAM Mount Aluminum Universal Hook Clamp PDA Screw Down Plate Mount

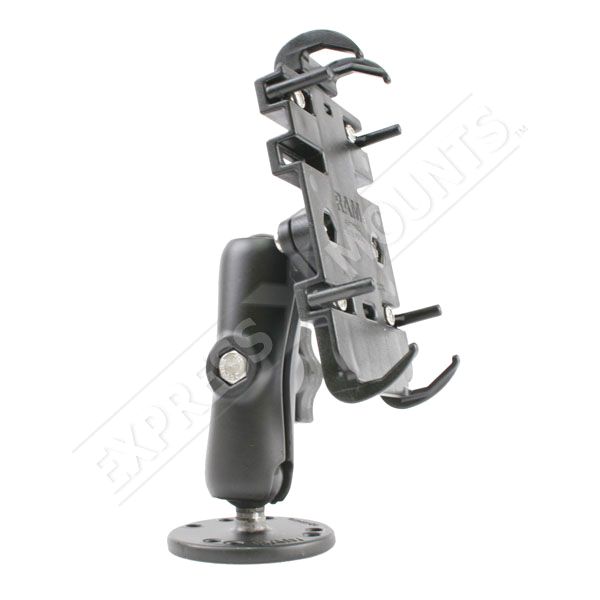

RAM Mount Universal Hook Clamp PDA Screw Down Plate Mount
Click image for larger view
Mfg P/N: RAM-B-138-PD3U
SKU: RAMB138PD3

Share this item: Facebook DiggDelIcioUs
 $33.95
List Price:  $39.73
You Save: $5.78 (15%)
Price shown in USD currency

In Stock!
Ships: by 3PM today

Qty:


This item is Brand New (not refurbished), and has a Lifetime Warranty (excluding electronic or lense components)

Found a lower price? Let us know!

 Canadian Customers!
See this item at gpscity.ca


JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



UNIVERSAL HOOK CLAMP PDA SCREW DOWN PLATE MOUNT PRODUCT DETAILS
 Back to Top

The RAM-B-138-PD3 RAM Mount Marine Grade Aluminum Screw Down Surface PDA Mount consists of the 1 inch diameter ball and socket system with RAM Universal Top Hook Clamping Plastic Cradle for Electronics and PDA Units.

PDA Mount Cradle Design:

The RAM High Strength Plastic Hook Clamping Cradle is designed to hold a large amount of different kinds of electronic devices, especially PDAs.

NOTE: If you are looking for a cradle for your Compaq iPaq, an alternative solution is one of the following:
• RAM-HOL-CO1
• RAM-HOL-CO2 and RAM-HOL-CO2P (powered)
• RAM-HOL-CO3 and RAM-HOL-CO3P (powered)
• RAM-HOL-CO4 and RAM-HOL-CO4P (powered)

PDA Mount Arm Design:

The RAM-B-201 RAM Mount Marine Grade Aluminum Dual Socket Arm is a 1 inch B size Ball Socket Arm with open socket ends. The arm is 3.0 inches long between socket centers and is finished with a Black Powder Coating. The side of the arm includes a tightening knob which allows you to open and close the socket ends. For a layout of the dimensions RAM-B-201 arm, take a closer look with the RAM-B-201 Design Drawings (pdf file).

PDA Mount Base Design:

The RAM-B-202 RAM Mount Marine Grade Aluminum Screw Down Plate has a 1.0 inch diameter Rubber Ball connected at right angles to a 2.5 inch diameter Plate. The plate has pre-drilled holes in the base plate, including the universal AMPS hole pattern. For a layout of the hole spacing and 1.0 inch rubber ball location, take a closer look with the RAM-B-202 Design Drawings (pdf file).

Mount Base Mounting Solutions:

Mounting hardware is NOT included with the purchase of the RAM-B-202. A semi-permanent solution for mounting this base is by using the RAM double sided adhesive disk (RAM-202PSA). The disk will hold the RAM-B-202 base in many different locations without screws.

TomTom GPS Mount Options:

To help ensure you have the Electronics and PDA Mount you require, take a look at the list of available RAM electronics and PDA mounts on the Universal Electronics and PDA Mount Page. Here you can select from suction cup electronics mounts, flat surface screw down electronics mounts, electronics car mounts, non skid weighted electronics mounts and more bundled with the RAM-HOL-PD3 Universal Electronics / PDA Top Clamp Cradle.



UNIVERSAL HOOK CLAMP PDA SCREW DOWN PLATE MOUNT PRODUCT FEATURES
 Back to Top

  • Warranty: Manufacturer's Life Time Warranty
  • Cradle Design: Universal Top Hook Cradle for PDA Devices
  • Cradle Material: High Strength Plastic
  • Mount Material: Black Powder Coated Marine Grade Aluminum
  • Mount Ball Size: RAM 1 inch Solid Rubber Ball
  • Pivot Point Design: RAM Patented RAM 1 inch Rubber Ball and Socket Joint
  • Arm Type: RAM Arm with Dual 1 inch Sockets
  • Arm Length: Standard length of 3 inches between socket centers
  • Base Type: Round 2.5 inch diameter Plate design to be bolted to a flat surface



UNIVERSAL HOOK CLAMP PDA SCREW DOWN PLATE MOUNT WHAT'S IN THE BOX?
 Back to Top

1. RAM Mount Universal Top Clamping Hook Cradle (RAM-HOL-PD3U)
2. RAM Mount Screw Down Standard Arm Diamond Assembly (RAM-B-138U)
3. SUB-COMPONENTS:
4. RAM Mount Diamond Plate with 1 inch Ball (RAM-B-238U)
5. RAM Mount Standard Length Dual 1.0 inch Socket Arm (RAM-B-201U)
6. RAM Mount Round 2.5 inch dia Plate with 1 inch Ball (RAM-B-202U)




UNIVERSAL HOOK CLAMP PDA SCREW DOWN PLATE MOUNT CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. It's quick and easy! No login required.

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!
