RAM Mount Vehicle Mount Adjustable Stabilization Leg with 2 inch Foot |
| |
|
| Most Recent Customer Reviews |
| Be the first to review this item. |
There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free
to write a quick review.
| | |
|
|
Additional Images
  |
Not yet rated. Share:
See more RAM Mount items. |
|
| Best Price: |
$5.59 (and this item ships for $2.49) |
Availability: |
In Stock.
Ships by 3PM PDT tomorrow, September 3 |
|
| |
| Price Match: |
Get an Instant Price Match in about 2 minutes (during business hours). |
| |
| Model: |
RAM Mount Vehicle Mount Stabilizer Leg RAM-FOOT2 |
| Part No: |
RAM-FOOT2 |
| Condition: |
Brand New, Lifetime Warranty (max 3 years on electronics & lenses) |
|
|
| Learn More with our Instructional Video Media |
RAM Support Leg: In the Box (RAM-FOOT2) |
RAM Support Leg: Assembly & Installation (RAM-FOOT2) |
More videos available on the GPS City Youtube Channel!
 | | |
|
| Product Detail |
| Manufacturer: |
National Products, Inc |
Category: |
All Purpose Mounts |
Type: |
Mount Parts |
| Model: |
RAM-FOOT2 |
SKU: |
RAMFOOT2 |
UPC: |
793442921902 |
| Announced: |
March 31, 2005 |
First Shipped: |
March 24, 2005 |
Weight: |
0.213 lbs. |
| Description |

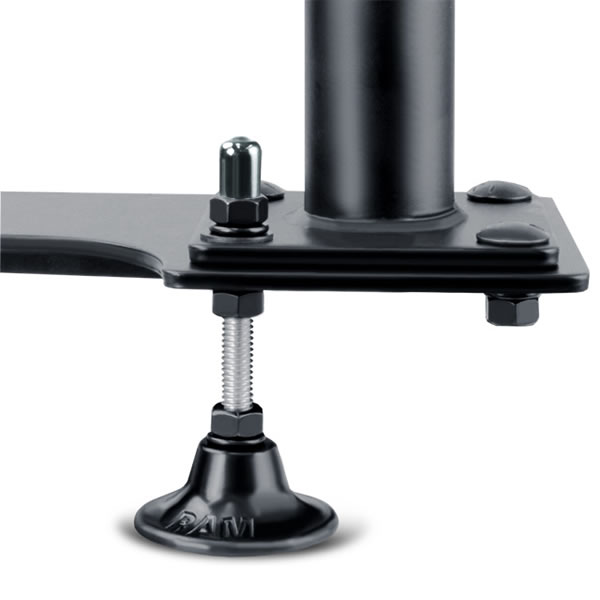

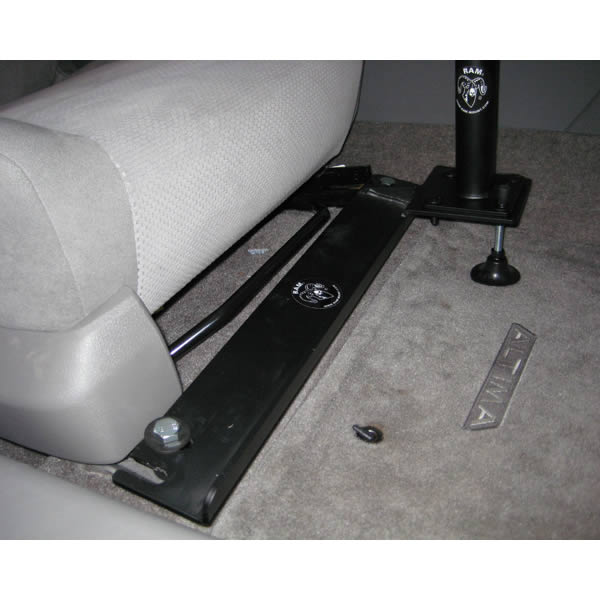

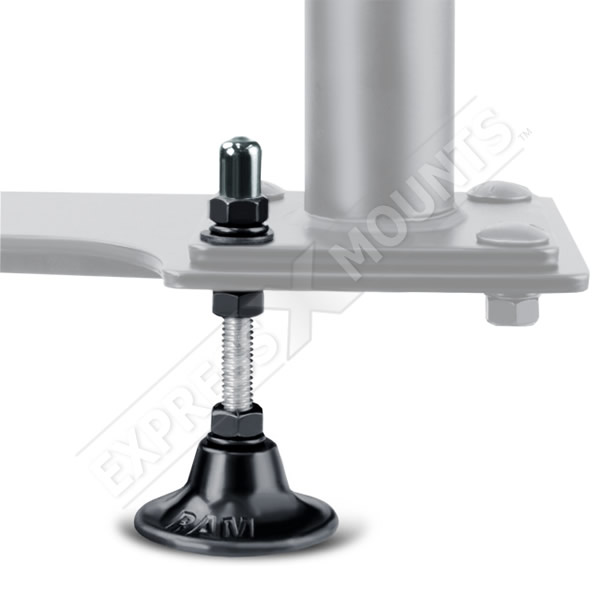

The use of the stabilizer foot is recommended to reduce bounce in certain applications. Simply replace one of the carriage bolts holding the pole system or riser with the stabilizer foot as shown. You will need a 1/2 inch box wrench to tighten the hardware. Slide the bolt through the foot then slide a lock washer over the thread so it rest on the foot. Place a nut over the thread and tighten to secure the foot over the head of the bolt. Next, thread another nut over the bolt and slide another lock washer over the thread. Have this nut and washer about 1 inch off the foot prior to final adjustment. Now, pass the foot up through the base from the bottom. Once through the base, slide the flat washer, lock washer, then thread the nut over the bolt. Position foot while hardware is loose so it is supporting the base off the floor. Once in position, tighten the nut so that it forces the foot down against the vehicle floor board.
|
