Product Detail & Documentation (all files in PDF format)
Manufacturer
RAM Mount
Category
GPS Mounts
Model
RAM-B-125-GA5U
SKU
RAMB125GA5
Weight
1.038 lbs.
Share this item:
Need Assistance? We're here to help. (That's the Express Mounts Difference!)
If you have a specific question about an item, try entering your question using the Questions & Answers section above - we usually respond on the same or next day.
During our office hours 8AM - 5PM PST, Mon-Fri, you can contact us using
, or reach us by phone at 1-800-231-7540.
What's Included With The RAM Mount Garmin eTrex Series Flip Yoke Mount RAM-B-125-GA5U? The RAM Mount Garmin eTrex Series Flip Yoke Mount RAM-B-125-GA5U ships with the following items included:

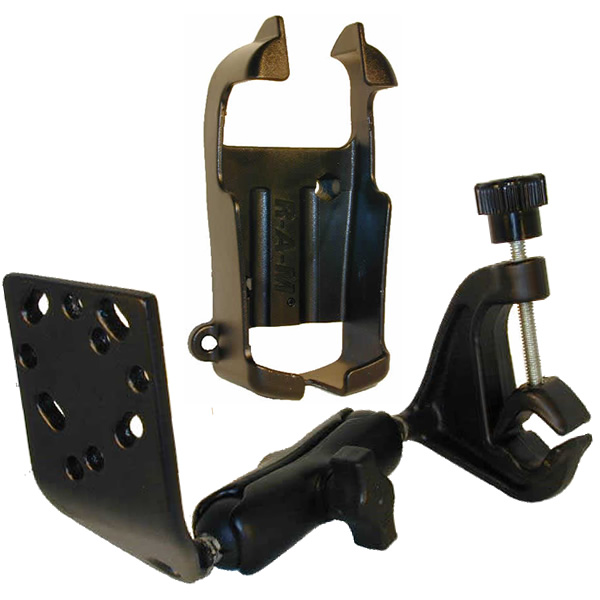

RAM Mount Garmin eTrex Series Flip Yoke Mount RAM-B-125-GA5U Description The RAM Marine Grade Aluminum Yoke Mount, with Extension Plate, consists of the 1'' dia. ball and socket system with RAM Plastic Cradle for the Garmin eTrex Series.
BASE DESIGN: The Powder Coated Marine Grade Aluminum Yoke Clamp Mount Base fits a rail diameter from 5/8'' to a maximum of 1 1/4''. The 1'' rubber ball is at a right angle to the plane of the mount so when connected to a rail, the ball sits parallel to the rail.
To mount the base, simply place the yoke clamps around the rail and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this the perfect mounting system for rental planes and unusual shaped motorbike rails.
Note: The rail does not need to be perfectly round to mount this base.
Extension plate Design
The RAM Powder Coated Marine Grade Aluminum Extension Plate with 1'' Rubber Ball allows you to maneuver your GPS unit, or any connected device, in more positions than the standard mounting plate. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications.
The connection section of the plate is 2.5'' square with predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25'' forward, at a 45 degree angle, from the center of the 1'' ball and approximately 1.5'' above the 1'' ball (to the bottom of the connection section of the plate).
ARM DESIGN: The Powder Coated Marine Grade Aluminum Standard Length Double Socket Arm is 3.0'' long when measured between socket centers.
CRADLE DESIGN:
The RAM-HOL-GA5 RAM Mount High Strength Plastic Cradle is designed to hold the Garmin eTrex Series (non-color screen), including the following GPS units,
Garmin eTrex (Yellow)
Garmin eTrex H (Yellow)
Garmin eTrex Camo
Garmin eTrex Summit
Garmin eTrex Venture
Garmin eTrex Legend
Garmin eTrex Vista
All cables can stay connected to the unit while in the RAM cradle.
