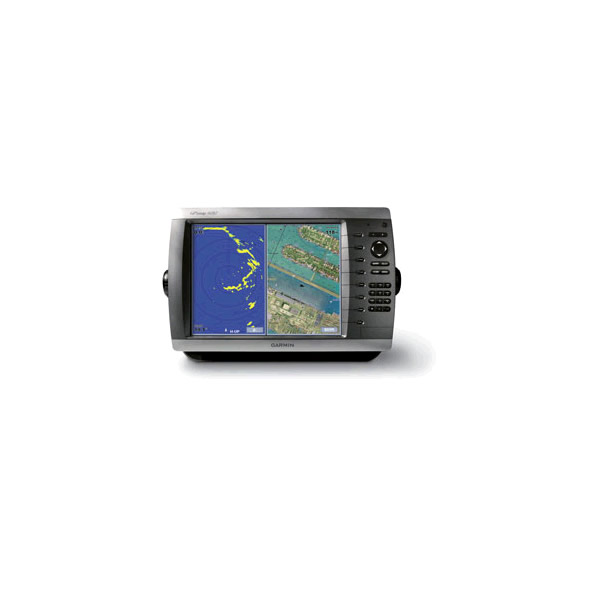

Garmin GPSMAP 4012 Marine GPS with Color Screen


Garmin GPSMAP 4012
Click to view larger image
Mfg P/N: 010-00592-00
SKU: 4012

Share this item: Facebook DiggDelIcioUs
 This item is not currently available. Please check back often to see if it becomes available again.

Accessories may still be available for this item. Click to view accessories.



JUMP TO: (Use these links to quickly jump down to a section of the page)
Accessories
Product Features		 Customer Reviews
What's In The Box?		 Product Videos
Product Tips		 Family Tree
Alternative Units



GPSMAP 4012 PRODUCT DETAILS
 Back to Top

The power of networking meets the brilliance of great design in this large-screen chartplotter, which serves as your all-in-one “nerve center” for the Garmin Marine Network. The GPSMAP 4012 has crisp, video-quality resolution on a whopping 12.1” XGA display as well as a worldwide, satellite-enhanced basemap. By connecting to the Garmin Marine Network, you can add sonar, radar and weather. For even more enhanced features, you can add the optional BlueChart® g2 Vision card.

View Detailed Graphics and Video

The 4012 features a worldwide basemap with high-quality satellite images in place of more traditional maps. And for more detail, you can add maps easily with the SD card slot without having to connect to a computer. The 4012’s high-speed processor draws maps quickly, and its simple intuitive interface makes navigating easy. To keep tabs on your engine room or other area of your boat, you can also connect a live video feed with the 4012’s video input and output options.

Add Extras with BlueChart g2 Vision

With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.
  • 3D mariner’s eye view or fish eye view provides you with a 3-dimensional perspective of map information, both above the waterline and below it.
  • High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
  • Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions.
Connect to the Garmin Marine Network

The 4012 connects easily to the high-speed Garmin Marine Network, so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the 4012 and other chartplotters on your boat. You can also add high-powered radar, sonar and XM satellite weather and radio to your system.



GPSMAP 4012 PRODUCT FEATURES
 Back to Top

  • Garmin radar compatible: yes
  • Garmin sonar compatible: yes
  • CANet™ compatible: no
  • Garmin Marine Network™ compatible: yes
  • Supports AIS (tracks target ships' position): yes
  • Supports DSC (displays position data from DSC capable VHF radio): yes
  • Audible alarms: yes
  • Tide tables: yes
  • Hunt/fish calendar: no
  • Sun and moon information: yes
  • 3D map view: yes (with optional BlueChart g2 Vision card)
  • Auto Guidance: yes (with optional BlueChart g2 Vision card)
  • Automatic routing (turn by turn routing on roads): no
  • XM WX Weather & Radio for U.S. compatible: yes
  • Voice prompts (e.g. "Turn right in 500 ft."): no
  • Remote control: no
  • Headphone jack/audio line-out: no
  • Audio/video input/output: yes
  • Portable: no
  • Automotive/motorcycle-friendly: no
Physical & Performance:
  • Unit dimensions, WxHxD: 14.8" x 9.5" x 4.6" (37.6 x 24.1 x 11.7 cm)
  • Display size, WxH: 9.7" x 7.3", 12.1" diagonal (24.6 x 18.5 cm, 30.7 cm diagonal)
  • Display resolution, WxH: 1024 x 768 pixels
  • Display type: XGA display
  • Weight: 10.0 lb (4.5 kg)
  • Battery: none
  • Battery life: none
  • Waterproof: yes (IPX7)
  • Antenna: external
  • NMEA output: NMEA 0183, NMEA 2000
  • RoHS version available: no
Maps & Memory:
  • Basemap: yes
  • Preloaded maps: no
  • Ability to add maps: yes
  • Built-in memory: none (cannot load maps to internal memory)
  • Accepts data cards: SD card slot
  • Waypoints: 1,500
  • Routes: 20
  • Track log: 10,000 points; 20 saved tracks



GPSMAP 4012 CUSTOMER REVIEWS
Back to Top

Click here to Add Your Own Review. (It's quick and easy! No login required.)

There are currently no reviews for this product. If you have comments on this product that you would like to share with other users, please feel free to write a quick review using the form below. Thank you!




GPSMAP 4012 USER TIPS (Courtesy of Express Mounts)
 Back to Top

GPSMAP 3005C PICTURE GALLERY:

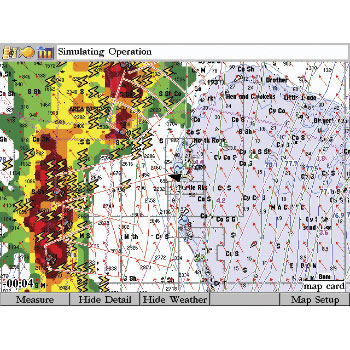

XM Satellite Weather Screen
Use with GDL 30 for live XM satellite weather, including wind direction, wave height, surface temperature and more

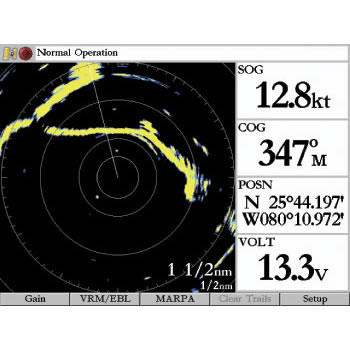

Radar Screen
Use with GMR 20 or 40 radar scanners for precise target definition

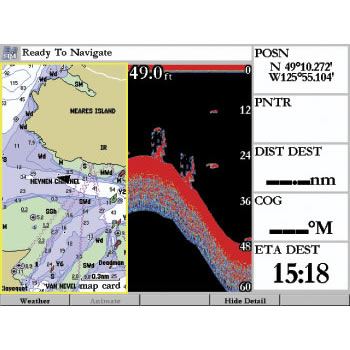

Map and Sounder Screen
The configurable MFD allows you to simultaneously view map and sounder (with optional GSD 20 remote sounder) information.



GPSMAP 4012 ACCESSORIES (21 items)
 Back to Top

 CAN NETWORK (1 items) Price  Buy!
 Garmin CAN Kit with 40ft Cable (010-10742-00 ) $24.95  Buy!
 CABLES (2 items) Price  Buy!
 Garmin 4XXX Power Cable (010-10922-00) $8.95  Buy!
 Garmin AV Cable (010-10548-00) $25.95  Buy!
 COVERS (1 items) Price  Buy!
 Garmin COVER (010-10914-00) $8.95  Buy!
 MARINE NETWORK (14 items) Price  Buy!
 Garmin Cable Coupler (010-10580-00) $22.95  Buy!
 Garmin Cable Grommet (010-10562-00) $1.95  Buy!
 Garmin GSD 22 (010-00397-00) $393.95  Buy!
 Garmin GSM 10 (010-00351-00) $196.95  Buy!
 Garmin Marine Network 20ft Cable (010-10551-00) $24.95  Buy!
 Garmin Marine Network 40ft Cable (010-10552-00) $33.95  Buy!
 Garmin Marine Network 6ft Cable (010-10550-00) $16.95  Buy!
 Garmin Marine Network Cable 300FT (010-10647-00) $73.95  Buy!
 Garmin Marine Network Cable 300FT (010-10647-01) $116.95  Buy!
 Garmin Marine Network Cable Connector 2-Pack (010-10603-00) $6.95  Buy!
 Garmin Marine Network Cable Connector 20-Pack (010-10603-01) $57.95  Buy!
 Garmin NMEA 2000 Cable Weather Cap (010-10817-01) $1.95  Buy!
 Garmin Network Cable Weather Cap (010-10817-04) $2.95  Buy!
 Garmin Power/Data Cable Weather Cap (010-10817-03) $1.95  Buy!
 MOUNTS (1 items) Price  Buy!
 Garmin 4XXX Second Mount Station (010-10928-00) $53.95  Buy!
 XM WX SATELLITE (1 items) Price  Buy!
 Garmin GDL 30A Weather/Radio Recevier (010-00342-01) $629.95  Buy!
